  • Comptaible With: M.2 Socket (Key E) but don't support M.2 Socket (Key E) with Intel® CNVi (Integrated WiFi/BT). If your motherboard supports type 2230 WiFi/BT module and Intel® CNVi (Integrated WiFi/BT), that Intel AX200 is not compatible with it.
  • Instant Wi-Fi upgrade for your desktop;
  • Wi-Fi 6 AX200 generation 802.11ax chipset;
  • Interface: M.2 2230 E Key, not support M.2:CNVI
  • Dual Band(2.4G/5G), Wi-Fi + Bluetooth 5.1;
  • Speed up TO 2400Mbps (The router must support 802.11ax, 160Mhz);
  • Support MU-MIMO & OFDMA;
  • Only support Windows 10*64bit;
  • Antenna Set: 6Dbi Antenna Length: 19.5cm, IPEX MHF4 U.FL Length: 20cm.


Model: AX200 Desktop Kit


Standards: IEEE 802.11ax/ac
Wireless Data Rates: Speed up to 2400Mbps (The router must support 802.11ax, 160Mhz)
Interface: M.2(22*30MM) for wifi
Frequency Band: 2.4 GHz / 5 GHz
Antenna: Dual Band External Antenna
Color: Black
System Requirements: Only Support Windows 10*64bit and Linux

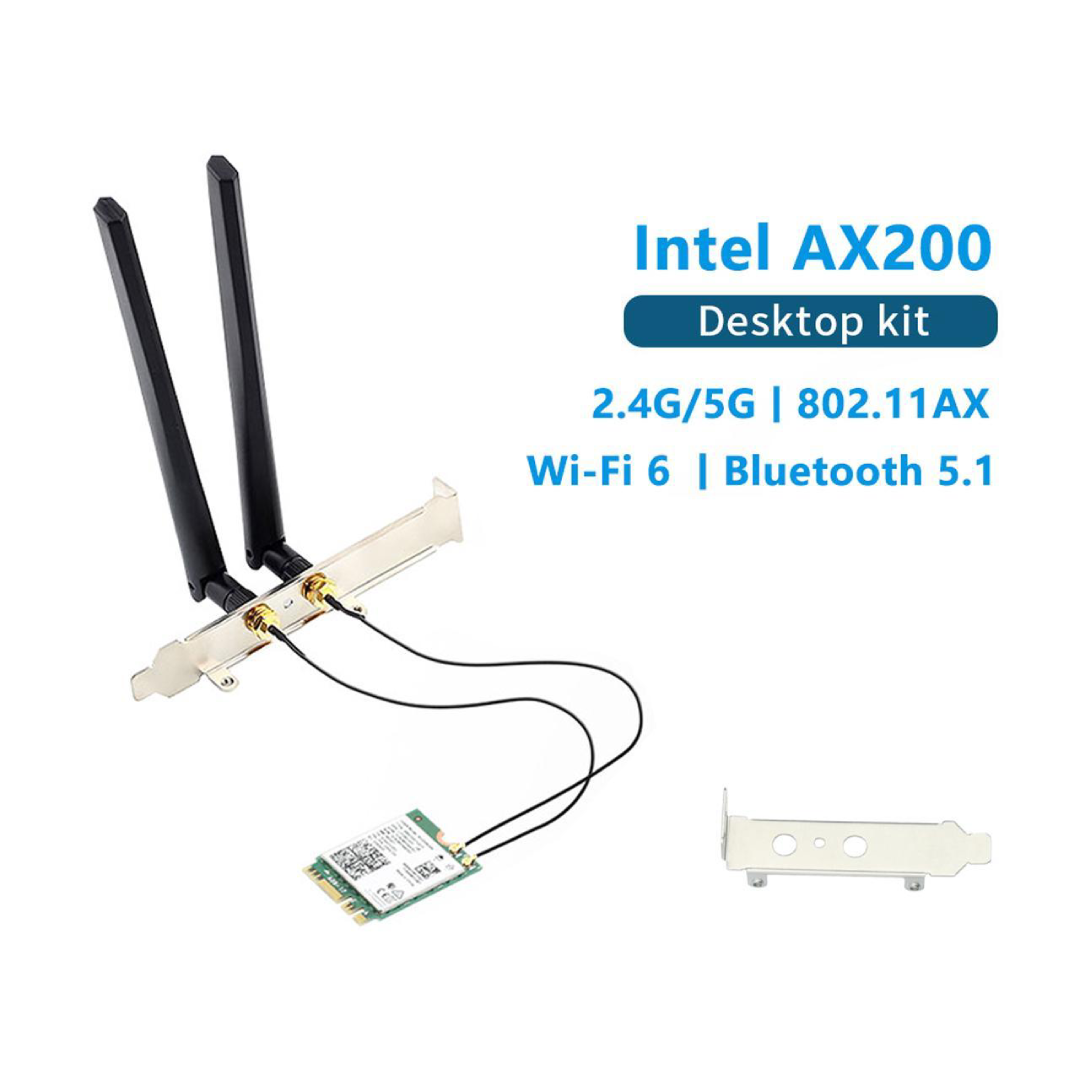

Features: Intel Wi-Fi 6 (Gig+) Desktop kit includes M.2 2230 module, optimized external antenna, standard size mounting bracket with RF cables installed and a low profile mounting bracket. Features Bluetooth 5.1 and WPA3 security. Motherboards must have M.2 key E slots to be compatible.
